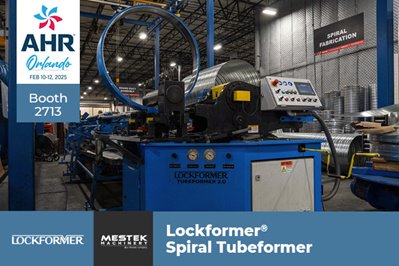

Maximize Your ROI with the Lockformer Spiral Tube Former 2.0

Lockformer’s Spiral Tube Former 2.0 is the latest machine in the spiral tube former series, offering both high-speed and heavy gauge capacities.

Article content provided by Mestek Machinery.

Lockformer’s Spiral Tube Former 2.0 is the latest machine in the spiral tube former series. This is our workhouse model combining the benefits and features of both previous models, offering both high-speed and heavy gauge capacities.

It can produce spiral pipe from 14-28 gauge thickness with maximum speeds of 287-344 ft/min depending on gauge and has a diameter range from 3”-100”. Lockformer’s Spiral Tube Former 2.0 is a revolutionary spiral tube former that is not only one of the most compact machines with the smallest footprint in the market, but also one of the most efficient. Powered by a frequency drive electric motor, the Spiral Tube Former 2.0 runs quietly, while reliably producing smooth, high-quality spiral pipe.

Features of the Lockformer Spiral Tube Former 2.0 include:

High Speed Capacity	Heavy Gauge Capacity
16-28 gauge (0.016 – 0.065”) galv. steel	14 gauge (0.066 – 0.079”) galv. steel
20-28 gauge (0.016 – 0.040”) stainless steel	18 gauge (0.041 – 0.050”) stainless steel
Speeds up to 344 FPM	Speeds up to 287 FPM

With one of the smallest fully automatic footprints in the industry, its compact size does not sacrifice speed, power, or technology.
The innovative Spiral Smart Technology™ (SST) via MestekNet Control Software incorporates a precise length-cutting system with efficient self-diagnostics and operator set-up requirements.
On-the-fly slitting device delivers an accurate, quiet cut that eliminates burrs, sparks, and excessive saw noise for tubes of a minimum 4” diameter and maximum material thickness of 20 gauge.
Compact design allows for trailer-mounting, easy transport to job site, and installation into the tightest of workplaces.
Compatible with a wide range of CAM programs for convenient download and integration.
Made in the USA.

Learn More
Explore the Lockformer Spiral Tube Former 2.0. Visit our website for more information about the Lockformer Spiral Tube Former series machines or to schedule a 1-on-1 consultation with a Lockformer Technical Advisor today to discuss how a Lockformer Spiral Tube Former 2.0 machine can maximize the productivity and profitability of your operation.

Please view the entire line of Mestek Machinery products here.

Have a question for Mestek Machinery? Contact Mestek Machinery here.

Mestek Machinery is an industry-leading provider of the most complete, innovative metal forming solutions, specializing in machinery manufacturing for HVAC ductwork.
